Fresenius Kabi SP7SED3

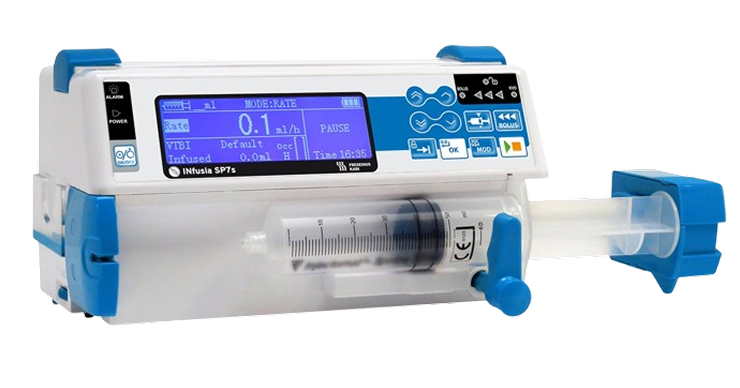

The Fresenius Kabi Infusia SP7s Syringe Pump is a precision infusion system designed to deliver accurate medication administration with enhanced safety and workflow efficiency.
- High-precision syringe infusion pump
- Built-in drug library with 1,030 drugs across 17 categories
- Automatic Anti-Bolus protection
- Stores up to 5,000 event logs
Key Features of Infusia SP7s
The Fresenius Kabi Infusia SP7s Syringe Pump combines precision infusion technology, advanced safety mechanisms, and intelligent drug management to deliver reliable medication administration across critical care and hospital environments.
Product Features
- Advanced Infusion Management
- Supports ml/h, Volume/Time, Volume Limit and Dose Modes
- Comprehensive drug library for accurate medication delivery
- Intelligent Safety Features
- Anti-Bolus system minimizes post-occlusion bolus risk
- Syringe position detection and automatic safety monitoring
- Smart Clinical Workflow
- Real-time infusion status with visual indicators
- Stores up to 5,000 event records
- Reliable Performance
- Compatible with multiple syringe sizes
- Long-lasting lithium-ion battery with extended operating time
Specifications and Documentation
Explore technical specifications and download essential product information and reference materials.
Specifications
- Dimensions
- 230 × 150 × 125 mm
- Weight
- Approx. 2.2 kg
- Display
- Monochrome Display (104 × 32 mm)
- Compatible Syringes
- 5 ml, 10 ml, 20 ml, 30 ml, 50 ml & 60 ml
- Infusion Modes
- ml/h, Volume/Time, Volume Limit & Dose Modes
- Flow Rate Range
- 0.1 – 1800 ml/h (Depending on Syringe Size)
- Infusion Accuracy
- ±1% Device Accuracy, ±3% Overall Accuracy
- VTBI Range
- 0.0 – 9999.9 ml
- Drug Library
- 1,030 Drugs Across 17 Categories
- Infusion Time
- 1 – 1999 Minutes
- Bolus Volume
- 1.0 – 100.0 ml
- KVO Rate
- 1.0 ml/h or Previous Lower Delivery Rate
- Battery
- 11.1 V, 2000 mAh Lithium-Ion Polymer
- Battery Backup
- Up to 8 Hours
- Recharge Time
- <10 Hours (OFF), <14 Hours (ON)
- Power Supply
- AC 100–240 V, 50/60 Hz
- Stacking Capacity
- Up to 8 Pumps
- Compliance Standards
- IEC 60601-1, IEC 60601-2-24, IEC 60601-1-8 & IEC 60529 (IPX4)
