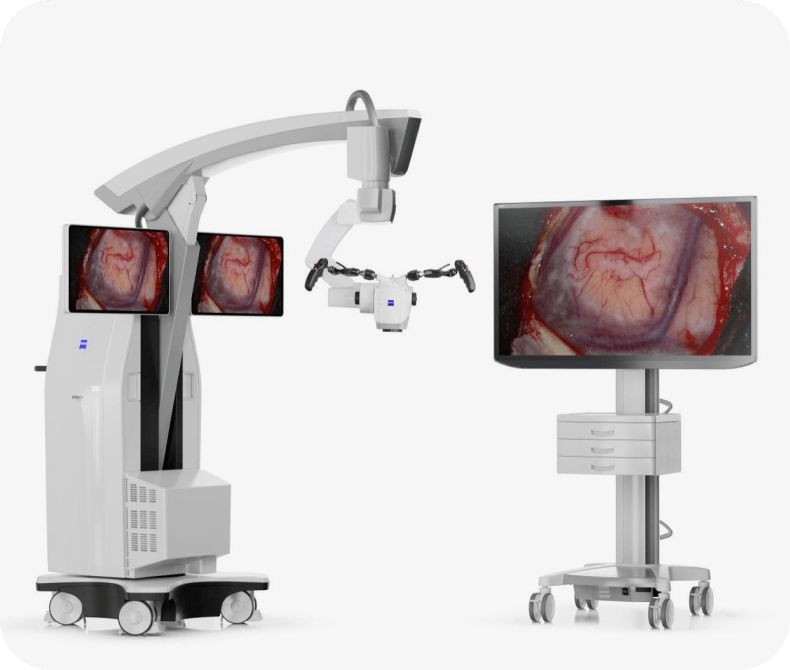

ZEISS KINEVO 900 S
Join the digital (r)evolution
A complex world requires clear solutions. The new ZEISS KINEVO 900 S symbolizes a (r)evolution in the market by turning complex into clarity.
Experience the new possibilities for digital visualization and seamless robotic interactions that help you deliver fast and reliable care.
The new system brings all the benefits of the successful ZEISS KINEVO 900, while provide you Best Digital Visualization, a Cobotic Assistant, and Connected Intelligence all in one device.
Key Features of ZEISS KINEVO 900 S
Engineered for surgical precision, the ZEISS KINEVO® 900 S combines advanced robotic visualization, intelligent workflow assistance, and exceptional optical clarity for complex neurosurgical procedures.
Product Features
- Best Digital Visualization
- Native 4K 3D visualization for exceptional image clarity
- Enhanced DepthPro mode for greater depth of field
- Robotic Assistance
- AI-supported cobotic movement for effortless positioning
- PointLock, PositionMemory & AutoCenter for precise workflow
- Advanced Surgical Workflow
- Hybrid optical and exoscopic viewing
- Voice-controlled functions with "Hey KINEVO!" support
- Connectivity & Documentation
- Integrated image and video recording
- Seamless data sharing for documentation and teaching
Specifications and Documentation
| Technical data | |
|---|---|
| Rated Voltage | 100 V–240 V AC |
| Power Consumption | Max. 1500 VA |
| Rated Frequency | 50 Hz – 60 Hz |
| ▪ Electrical Standard | IEC 60601-1, IEC 60601-1-2, IEC 60825, IEC 62304, C AN/CSA -C22.2 NO. 60601-1 |
| Degree of protection against electric shock: Class 1 | |
| Class 2 laser product as per IEC 60825-1 | |
| ▪ Weight | Total weight of device with max. add. load: Max. 395 kg |
| Total weight of the device incl. single-use transport box: Approx. 525 kg | |
| Packages | K900S Select | Standard | Comfort | Premium | Digital Plus | |
|---|---|---|---|---|---|---|
| System | KINEVO 900 S | ● | ● | ● | ● | ● |
| Main Tubes | 180° Tiltable tube | ○ | ● | – | – | – |
| Foldable tube f170/f260 | – | – | ● | ● | – | |
| Eyepieces | 10x widefield eyepiece | ○ | ○ | ○ | ○ | – |
| 12,5x widefield eyepieces | ○ | ○ | ○ | ○ | – | |
| Co-Observation | Left / right with stereo co-observer | ○ | ○ | ● | ● | – |
| Face-to-face | ○ | ○ | ● | ● | – | |
| Tube for co-observation 90° | Straight tube f170 | ○ | ○ | – | – | – |
| Tiltable tube 180° | ○ | ○ | ● | ● | – | |
| Foldable tube f170/f260 | ○ | ○ | – | – | – | |
| Fluorescence1 / QEVO | BLUE 400 | □ | □ | □ | □ | □ |
| BLUE 400 S | □ | – | □ | □ | □ | |
| YELLOW 560 | □ | □ | □ | □ | □ | |
| INFRARED 800 WITH FLOW 800 OPTION | □ | □ | □ | □ | □ | |
| QEVO | □ | □ | ● | ● | □ | |
| Video System | 4K 2D Video Package - Fully integrated 4K 3-chip camera, 2160 p | ○ | ● | – | – | – |
| 4K 3D Video Package - Fully integrated 3-chip cameras, 2160 p | ○ | – | ● | – | – | |
| Native 4K 3D Video Package - Fully integrated 3-chip camera with native resolution, 2160 p and HDR | ○ | – | – | ● | ● | |
| Video Options | Video Recording HD | □ | ● | ● | – | ● |
| Video Recording 4K | □ | □ | □ | ● | □ | |
| Integrated second video monitor 2D | □ | □ | – | – | – | |
| Integrated second video monitor 3D | □ | – | ● | ● | ● | |
| External 55’ 4K 3D monitor with cart | □ | □ | □ | □ | □ | |
| Illumination | Xenon – Fully integrated Xenon light source, 300W | ● | ● | ● | ● | ● |
| Focus | Laser Autofocus | ● | ● | ● | ● | ● |
| Working Distance | 200 – 625 mm | ● | ● | ● | ● | ● |
| Balance | AutoBalance | ● | ● | ● | ● | ● |
| XYZ-Movement | XYZ robotic movement in 6 axes (variable speed), Z-Mode | ● | ● | ● | ● | ● |
| AutoCenter | □ | – | □ | □ | □ | |
| Cobotics | Inertia Compensation | ● | ● | ● | ● | ● |
| Voice Assistant | □ | □ | □ | □ | □ | |
| Visualization | Integrated DepthPro | ● | ● | ● | ● | ● |
| MultiVision | ● | ● | ● | ● | ● | |
| Digital MultiVision | ● | ● | ● | ● | ● | |
| Panorama and Brilliance Image Modes | ● | ● | ● | ● | ● | |
| Hybrid Option2 | ● | ● | ● | ● | □ | |
| Networking & Storage | Integrated 2TB hard drive | ● | ● | ● | ● | ● |
| Navigation Module | □ | □ | □ | □ | □ | |
| DICOM Package – Patient data exchange with PACS system via DICOM | □ | □ | □ | □ | □ | |
| Shared Network Package – Storage on shared network directories | □ | □ | ● | ● | ● | |
| ZEISS Surgical Cloud and ZEISS Livestream Preparation | ● | ● | ● | ● | ● | |
| ZEISS Smart Services Package – Connectivity for ZEISS Smart Services | ● | ● | ● | ● | ● | |
| WLAN Package | ● | ● | ● | ● | ● | |
| Navigation Package | □ | □ | □ | □ | □ | |
| Foot Control Panel | Foot Control Panel wired / wireless | □ | □ | □ | □ | □ |
