Zeiss Lumera T
The Cardiolife TEC-8300 series is designed for emergency use, offering fast charging and shock delivery, easy operation, and reliable cardiac monitoring.
- High-resolution 8.4” TFT color LCD display.
- Shows ECG, pulse, energy charge, 12-lead ECG, CO2 /SpO2 /NIBP/IBP/Temp
- Up to 6 traces can be shown simultaneously
- 12-lead ECG data can be shared with mobile devices via Bluetooth
Key Features of ZEISS Lumera T

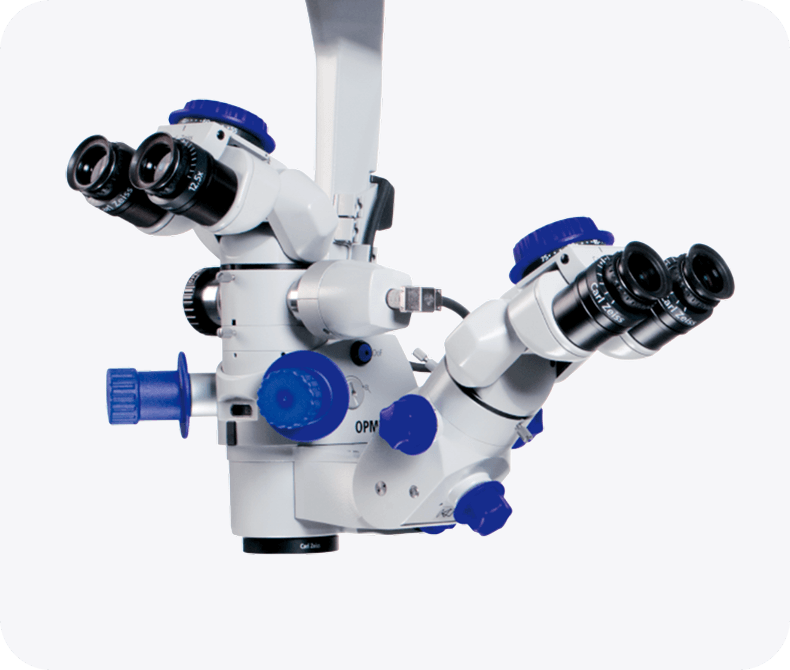

Engineered for precision in ophthalmic surgery, the ZEISS OPMI LUMERA® T combines outstanding optical visualization, brilliant illumination, and ergonomic performance to support confident surgical outcomes.
Product Features
- Superior Optical Clarity
- High-quality ZEISS optics for exceptional image quality
- Bright, high-contrast visualization throughout the procedure
- Brilliant Illumination
- Stereo Coaxial Illumination (SCI™) for a stable red reflex
- Uniform illumination for enhanced visualization of ocular structures
- Ergonomic Design
- Compact microscope design for improved surgeon comfort
- Smooth positioning and intuitive controls for efficient workflow
- Reliable Surgical Performance
- Optimized for anterior and posterior segment procedures
- Designed to support precise and efficient ophthalmic surgery
Specifications and Documentation
Explore technical specifications and download essential product information and reference materials.
Specifications
- Optical System
- ZEISS apochromatic optics
- Zoom System
- Motorized 1:6 zoom ratio (magnification factor γ = 0.4–2.4)
- Focusing Range
- 50 mm motorized focus
- Objective Lens
- f = 200 mm (f = 175 mm optional)
- Binocular Tube
- Invertertube® (0°–180° tiltable tube optional)
- Eyepieces
- 10× widefield (12.5× optional)
- Illumination
- Stereo Coaxial Illumination (SCI™) with dimmable red reflex and surrounding field illumination
- Light Source
- Superlux Eye Xenon light source with manual bulb change (optional halogen and xenon/halogen combinations)
- Depth of Field
- DeepView™ depth of field management system
- Filters
- Integrated 408 nm UV barrier filter, blue-blocking filter, optional fluorescence filter
- Retinal Protection
- Integrated retinal protection device
- Weight
- 13.7 kg (with Invertertube®, integrated assistant's microscope, objective lens and eyepieces)
- Suspension System
- S88 floor stand
- Maximum Load
- 20 kg (complete microscope equipment including accessories)
